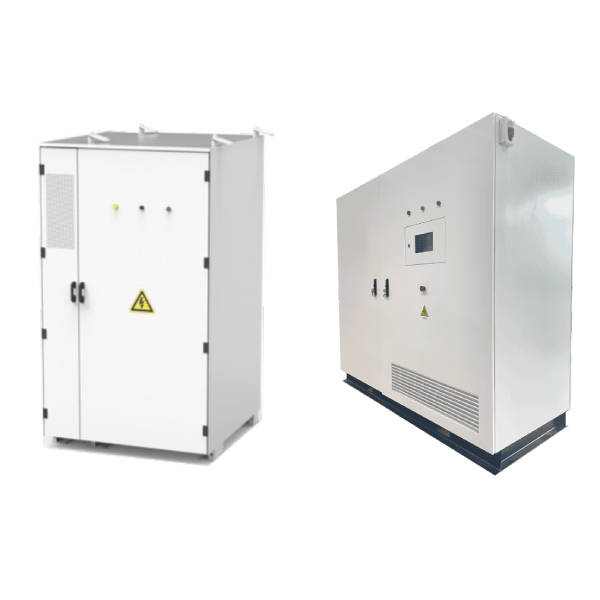

Commercial Energy Storage System

Description
● 3 Years Warranty
● 15 Years Power Guarantee

● Horizontal blockinstallation, more convenient maintenance,save labor costs can be combined up to 4 standard productscapacity can be expanded to 1600KWH High conversion efficiency

● The protection level of the AC cabinet is lP54
● The protection level of the DC cabinet is lP65
● Corrosion protection grade C5

● The maximum number of cycles of the battery module is 12000S
● Both air-cooled and liquid-cooled systems can be selectedto reduce the difference increase life expectancy

Introduction to small industrial and commercial energy storage systems

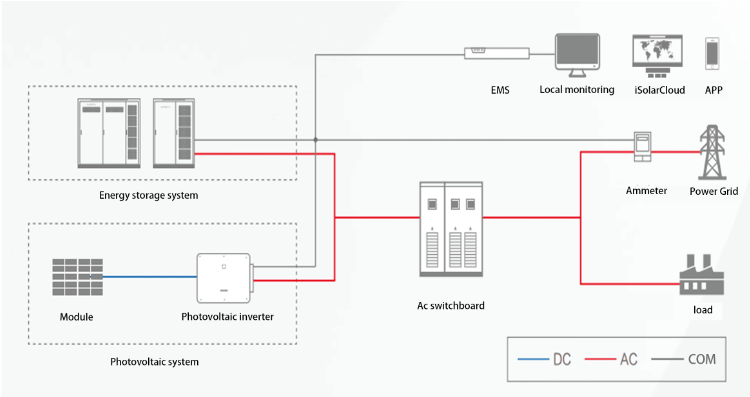

The power range of small industrial and commercial energy storage systems is 50-250kW, and the capacity range is 50-500kWh. It meets the basic power needs of small industrial and commercial businesses. It matches the distributed photovoltaic power generation system (20-100kW) and realizes major applications such as self-use, surplus power grid, and backup power supply. Scenes. It can be flexibly arranged outdoors and can realize megawatt-level industrial and commercial energy storage system applications.

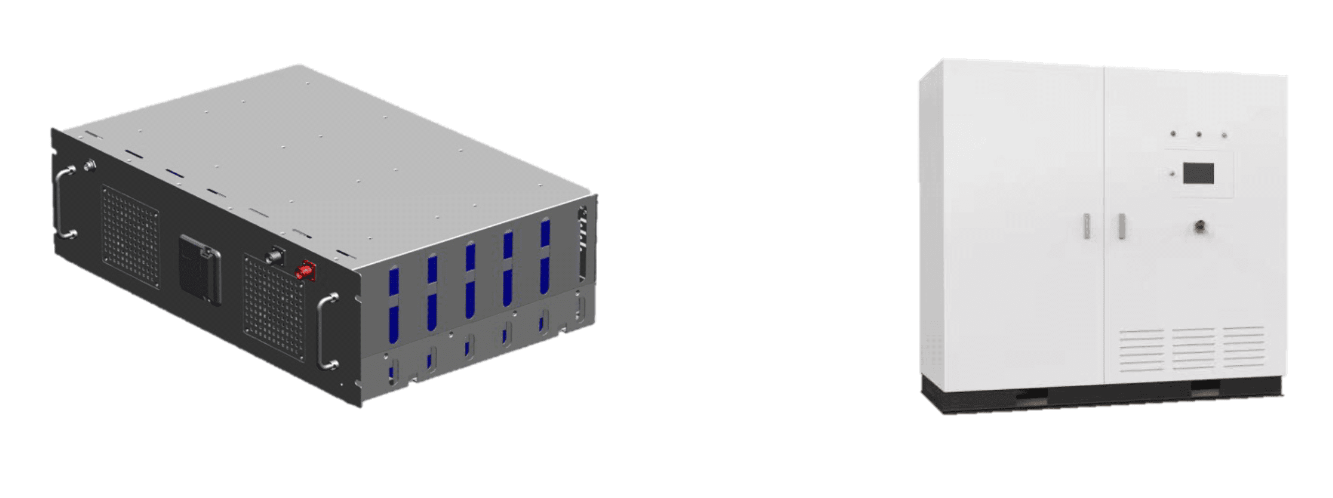

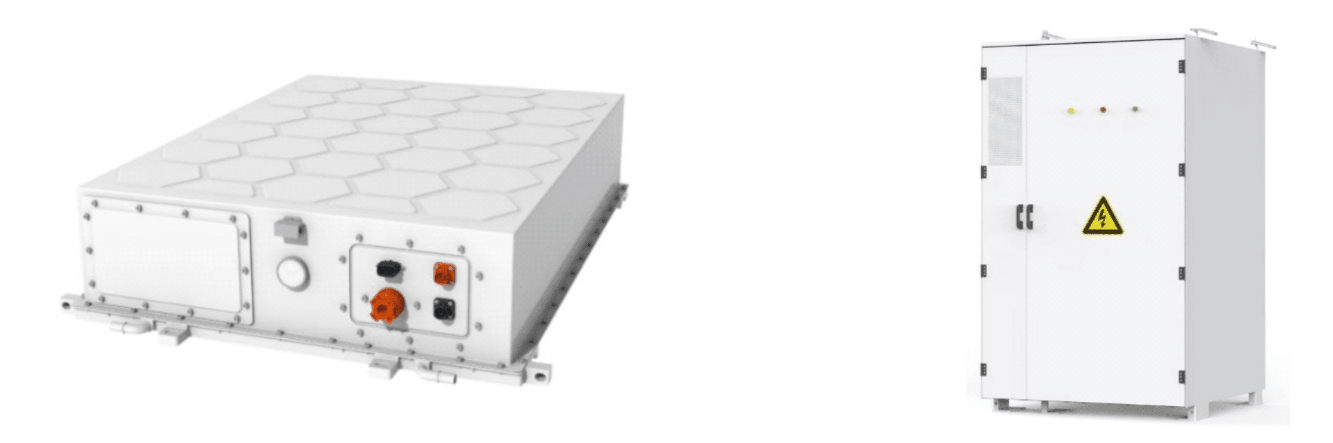

Small industrial and commercial energy storage systems are highly integrated and easy to transport, install, operate and maintain; they are all pre-assembled and do not require on-site installation of battery modules; modular design supports parallel connection, which facilitates system expansion; front wiring eliminates the need for cable trenches; individual systems are independently controlled. The risk of thermal runaway is small and controllable. The 100KW/215KWh industrial and commercial energy storage system consists of a 215KWh battery pack, inverter, fire protection system, temperature control system, EMS energy management system and some control circuit devices. Flexible in application and easy to install, it is suitable for factories, buildings, etc. to adjust peak and valley power, emergency backup, etc. Suitable for indoor and outdoor installation.

Product advantages
● Efficient and flexible: modular design, supports parallel connection, and facilitates expansion.
● IP66 outdoor cabinet, C5 anti-corrosion; can be expanded to be used in communication base station backup power supply, island microgrid, intelligent BESS station and other fields.
● Intelligent and friendly: real-time status monitoring, fault recording, fault warning, and fault location.
● Safe and reliable: active fault current limitation; DC circuit safety management, fast fuse protection and arc protection; multi-level battery protection layer.
● Standardized cabinet design, easy installation, suitable for outdoor and indoor use.
● Air cooling and liquid cooling systems.

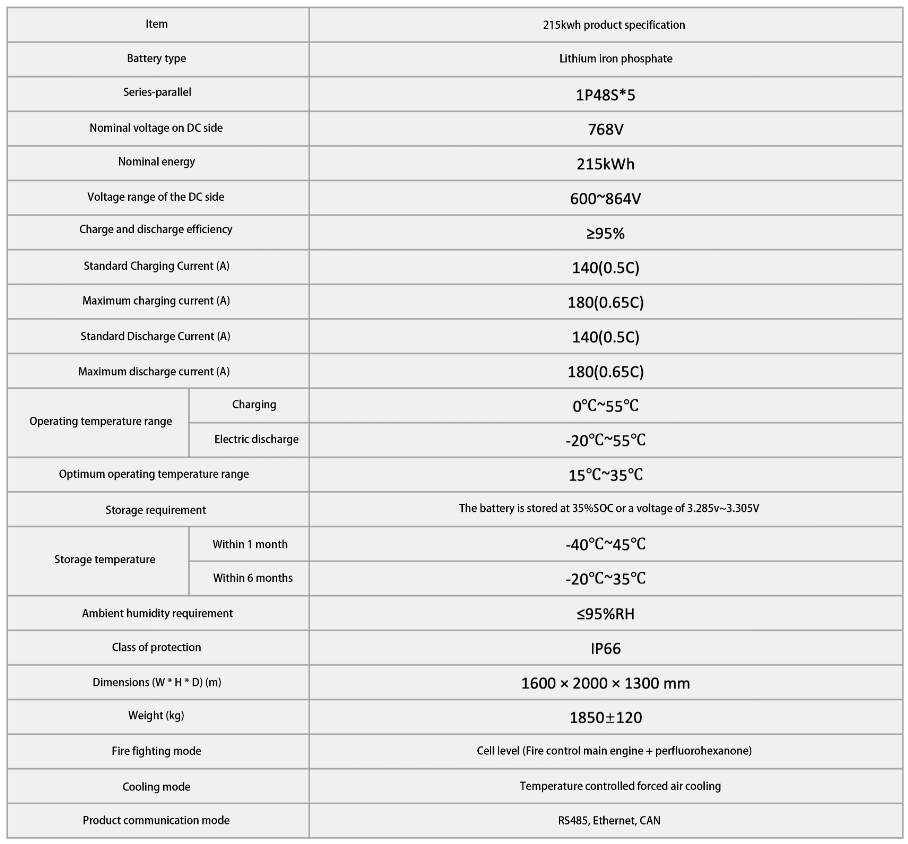

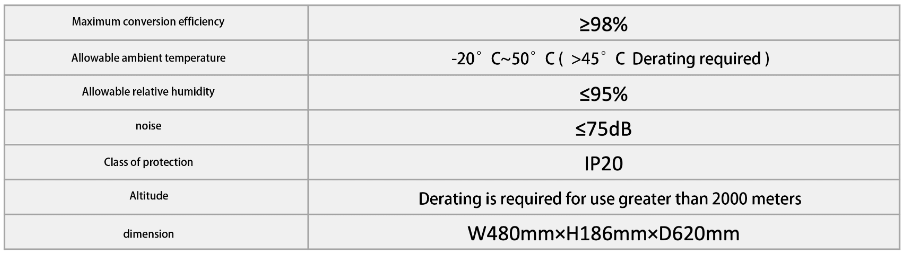

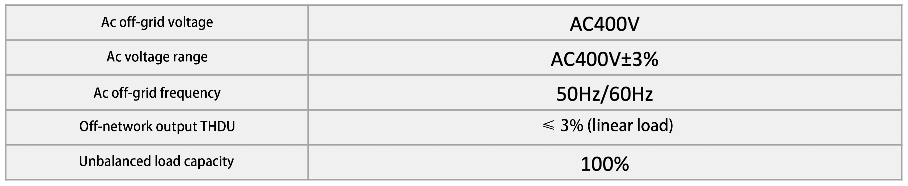

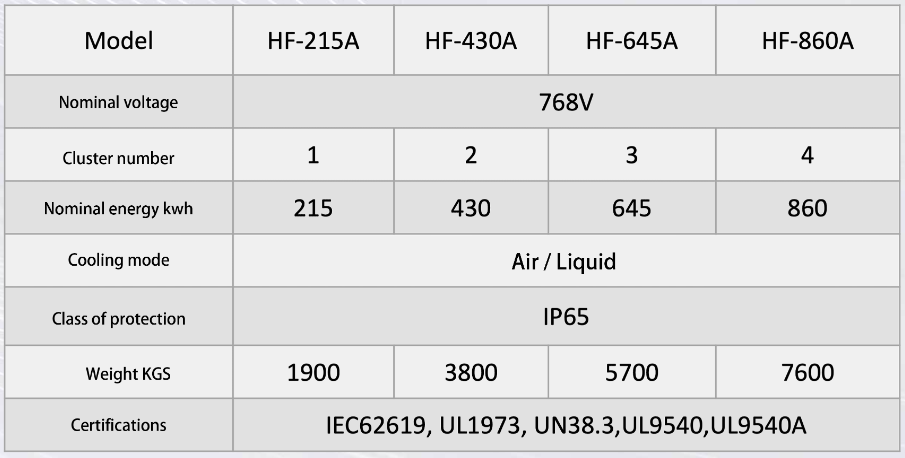

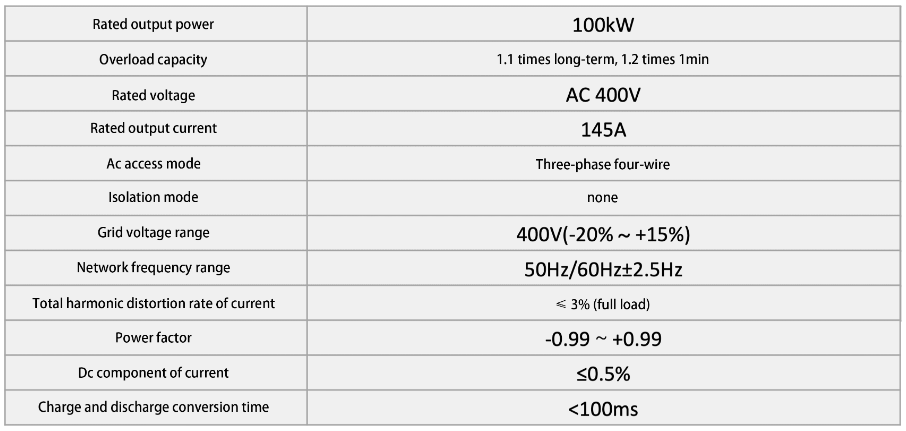

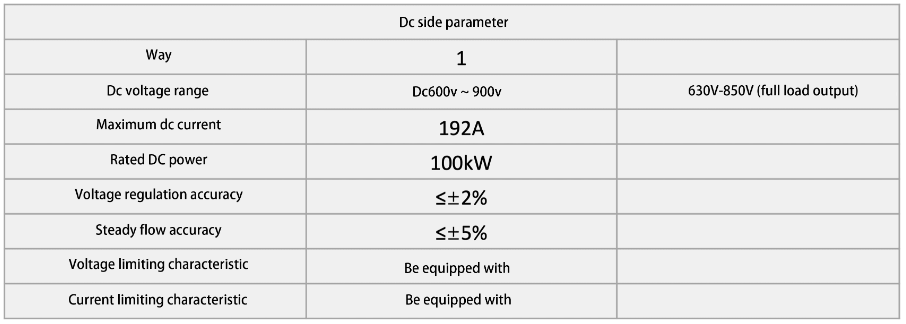

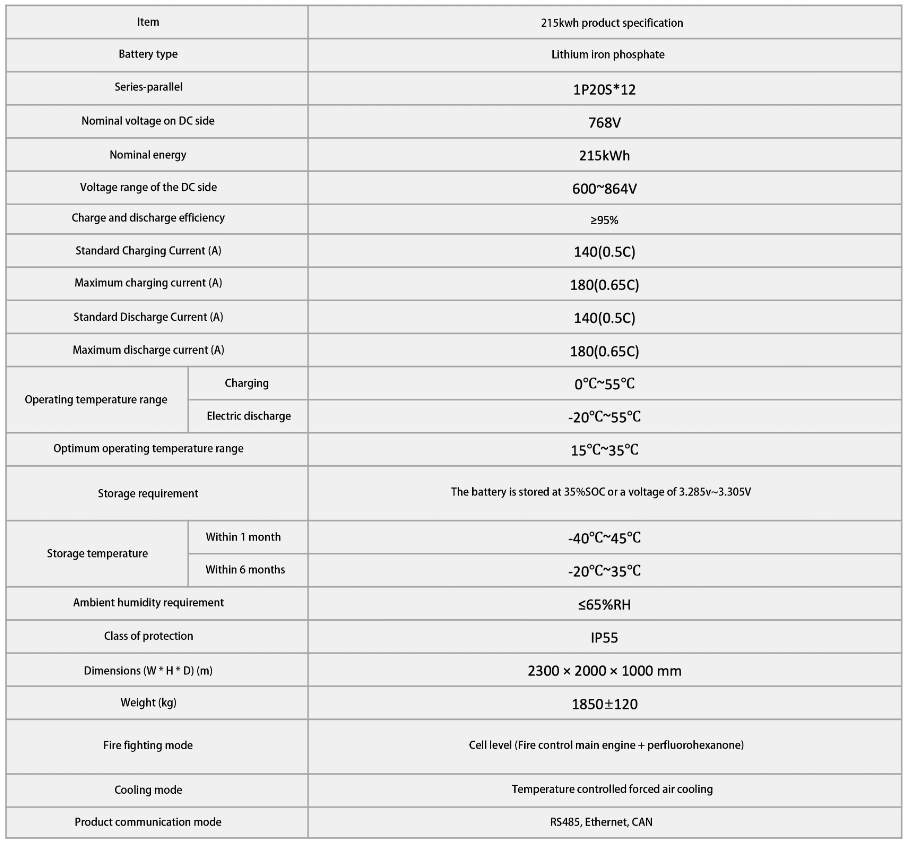

System Parameter


Features
● High safety: the selection of safe and stable lithium iron phosphate cell; IP55 protection grade to meet the needs of outdoor applications; Prevention based fire fighting strategy with independent fire fighting system.
● Long service life: the temperature difference inside the battery cluster is less than 5 ° C.
● Highly integrated: modular design, compatible with 600-1500V systems; Modular high energy density design saves floor space.
● Fire extinguishing system accurate down to the cell level.
● Indoor and outdoor applications.
